Qinstruments微型高速恒温振荡器(实验室标准型)

  • 商品品牌:QInstruments 德国
  • 商品重量:
  • 商品规格:
  • 上架时间:2020-04-03
  • 产品描述:Qinstruments微型高速恒温振荡器(实验室标准型) 中文名称: 微型高速恒温振荡器/高通量平行合成仪/微型恒温漩涡振荡器 英文名称 :High-speed thermoshaker, RT-99C, general applications 产品型号
Qinstruments微型高速恒温振荡器(实验室标准型)

中文名称:微型高速恒温振荡器/ 高通量平行合成仪/微型恒温漩涡振荡器
英文名称: High-speed thermoshaker, RT-99°C, general applications

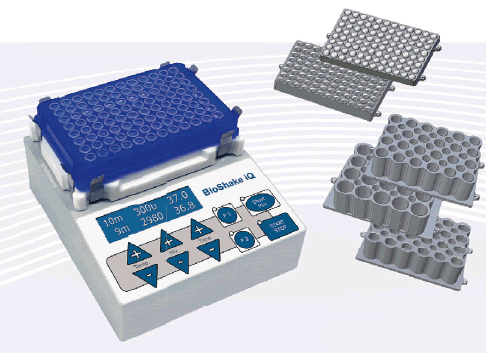

产品型号: BioShake iQ

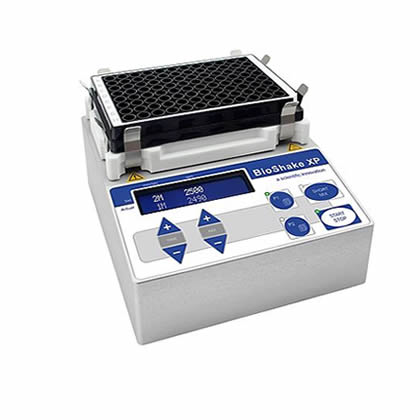

      BioShake XP
          两种型号参数的区别: BioShake iQ配有快速升温元件。
产品特点:
·      适用于微孔板、试管和玻璃小瓶
·      快速和高精确度加热,控温范围:室温到99°C;
(配合Cooling Block配件,加冰或冷却水,可以控制样品在更低温度混合)
·      可调转速范围:200 rpm-3,000 rpm
·      整合漩涡振荡和瞬时振荡功能
·      防震动技术:转动运行平稳,无振动,无噪音
·      可设置程序控制
·      可配多种适配器
·      外壳材质耐火铝
·      蓝光LED 大屏显示,

质量认证:  通过德国TUV质量认证,CE认证等。
混合原理:
高效的二维转动轴,精确控制转速,能在短时间内使样品完全混合均匀。
防漏技术,采用精确3维控制,防止样品液体浸湿管盖,防止渗漏发生。
精确控制漩涡转动,混合后,样品无挂壁,无需再离心。即使是采用试管、小试剂瓶、高密度材料,或少量体积样品, 都可以精确混合均匀,不挂壁,无需再离心收集。
转速可调范围 200 rpm-3000 rpm, 远超出其它品牌的最高转速,快速平稳,无液体飞溅,一次最多可运行 1536个微孔管样品。
Discover why BioShake Plate Mixer’s are without peer in the industry.
在业界还没有能达到相同性能的产品!


温度控制:
加热元件控制温度在平台上均匀输出,温度可控范围 室温到99°C, 可调节幅度0.1°C。控温精度 ±0.1°C
产品参数
Specifications
Adapter Plates
Microplates 96-, 384-, and 1536-well
microplates, deep well plates, PCR plates
Tubes 0.2 / 0.5 / 1.5 / 2.0 ml
standard microcentrifuge tubes
Glass vials 2.0 and 4.0 ml glass vials
others on request
Temperature
Temperature range ambient to 99°C
Temperature setting 0.1°C increment
adjustable from 0°C to 99°C
Temperature accuracy ±0.1°C
Temperature uniformity ±0.5°C at 45°C
±0.7°C at 75°C
±1.0°C at 95°C
Heat-up time ca. 7°C/min
(from ambient to 95°C in 10 min)
Mixing
Mixing frequency 转速 200 to 3,000 rpm (microplates)
200 to 1,800 rpm (tubes, glass vials)
Mixing orbit  转动幅度 constant 2 mm diameter
Speed setting resolution 转速设定梯度 50 rpm increments
Mixing regulation accuracy  转速精度 ± 25 rpm
Short-Mix function  瞬时混合功能 Yes
Timer
Timer setting 时间设定 1 min - 99 h
with automatic switch to stand-by
Timer setting resolution 时间设定梯度 1 min
Readability  显示时间 Minutes, Seconds
Continuous working 持续工作 Yes
Audible Alarm 完成提示音 Yes
Programming
Programs stored  程序储存 2
Definable buttons 程序设定按钮 P1 and P2
Individual program capacity 单程序可设定步骤 3 steps
Internal memory  内部存储 Yes
Display
Display 显示 LCD-display with backlight (blue)
Target values 显示参数 Time, Mixing frequency, Temperature
Actual values 可调参数 Time, Mixing frequency, Temperature
Electrical
Controller Micro controller
Power switch Yes
Operating Voltages 24 V DC input
100 Watt
Power supply External power supply unit
100-240 V AC, 50-60 Hz
Properties
Housing Material Aluminum anodized
Environment operating range +5°C to 45°C (80 % max. relative humidity)
Dimensions (W x D x H) 142 mm x 170 mm x 80 mm
(5.59 in x 6.69 in x 3.14 inches)
Weight 2.7 kg (5.95 lbs)


可选配件:

Cat. No. Changeable adapter plates*
1808-1021 Microplate adapter - Flat bottom, universal
1808-1031 Microplate adapter - 96 well round bottom, universal
1808-1041 Microplate adapter - 96 well standard PCR plate, universal
1808-1051 Microplate adapter - 384 well standard PCR plate, universal
1808-1121 Adapter - Eppendorf Deep well plate 96/1000 μl
1808-1131 Adapter - Eppendorf Deep well plate 96/500 μl
1808-1141 Adapter - BRAND Deep well plate 96/1100 μl
1808-1061 Adapter - 24 x 2.0 ml or 15 x 0.5 ml tubes
1808-1062 Adapter - 24 x 1.5 ml or 15 x 0.5 ml tubes
1808-1063 Adapter - 40 x 0.5 ml or 28 x 0.2 ml tubes
1808-1064 Adapter - 96 x 0.2 ml tubes
1808-1511 iQ Rack Cover - for adapter 24 x 1.5/2.0 ml tubes
1808-1521 iQ Cooling Block - for adapter 24 x 1.5/2.0 ml tubes
1808-1071 Adapter - 30 x 2.0 ml glass vials, Ø 12 mm
1808-1072 Adapter - 20 x 4.0 ml glass vials, Ø 15 mm
*customized adapters are available on request
